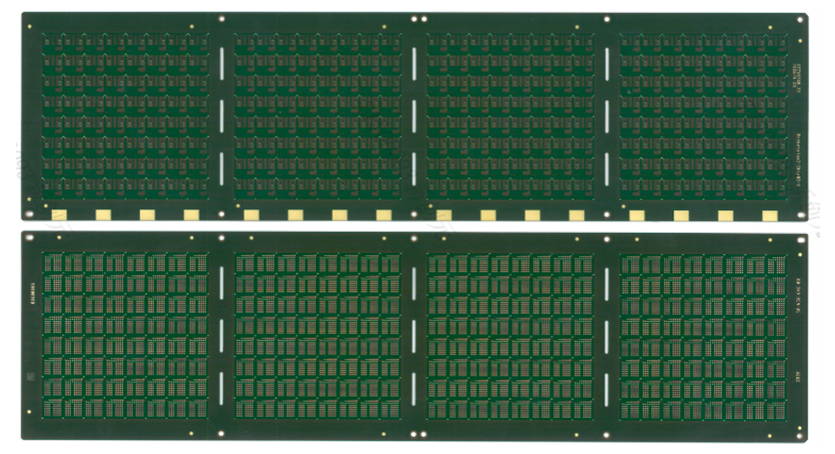

Layers: 2 ~ 6 layers
Board thickness: 80 ~ 280 μm
Minimum line width/spacing: 12/12 μm
Surface treatment: Nickel palladium gold, OSP, etc.
Bump pitch: 130 μm
SRO: 70 μm
Mostly used for packaging high-end processors in fields like smartphones, tablets, and multimedia devices.
